Name: SPC-R
Brand: Nabeya Bi-tech Kaisha
Availability: OutOfStock

Dimension Drawing

Specs/CAD

Select

M (Coarse) Nominal of Thread: All; M3; M4

L: All; 5; 6; 8; 10; 12; 15; 20; 25

Unit : mm

Part Number	M (Coarse) Nominal of Thread	Pitch	L	D₁	L₁	L₂	Cross-recessed Socket No.	Tensile Breaking Load (N)^＊1	Torsional Torque (N・m)^＊1	Qty per Pack	Mass (g)	Price (USD)	CAD Download	QTY (Pack)
SPC-M3-5-R	M3	0.5	5	6	1.75	0.7	2	266	0.18	100	0.15	10.30	CAD	Cart
SPC-M3-6-R	M3	0.5	6	6	1.75	0.7	2	266	0.18	100	0.15	10.30	CAD	Cart
SPC-M3-8-R	M3	0.5	8	6	1.75	0.7	2	266	0.18	100	0.16	12.02	CAD	Cart
SPC-M3-10-R	M3	0.5	10	6	1.75	0.7	2	266	0.18	100	0.17	13.72	CAD	Cart
SPC-M3-12-R	M3	0.5	12	6	1.75	0.7	2	266	0.18	100	0.18	13.72	CAD	Cart
SPC-M3-15-R	M3	0.5	15	6	1.75	0.7	2	266	0.18	100	0.2	20.59	CAD	Cart
SPC-M3-20-R	M3	0.5	20	6	1.75	0.7	2	266	0.18	100	0.24	25.72	CAD	Cart
SPC-M3-5-R(1000)	M3	0.5	5	6	1.75	0.7	2	266	0.18	1000	0.15	67.76	CAD	Cart
SPC-M3-6-R(1000)	M3	0.5	6	6	1.75	0.7	2	266	0.18	1000	0.15	67.76	CAD	Cart
SPC-M3-8-R(1000)	M3	0.5	8	6	1.75	0.7	2	266	0.18	1000	0.16	69.30	CAD	Cart
SPC-M3-10-R(1000)	M3	0.5	10	6	1.75	0.7	2	266	0.18	1000	0.17	75.46	CAD	Cart
SPC-M3-12-R(1000)	M3	0.5	12	6	1.75	0.7	2	266	0.18	1000	0.18	80.08	CAD	Cart
SPC-M3-15-R(1000)	M3	0.5	15	6	1.75	0.7	2	266	0.18	1000	0.2	120.12	CAD	Cart
SPC-M3-20-R(1000)	M3	0.5	20	6	1.75	0.7	2	266	0.18	1000	0.24	154.00	CAD	Cart
SPC-M4-10-R	M4	0.7	10	8	2.3	0.9	2	481	0.39	100	0.21	15.44	CAD	Cart
SPC-M4-12-R	M4	0.7	12	8	2.3	0.9	2	481	0.39	100	0.23	18.87	CAD	Cart
SPC-M4-15-R	M4	0.7	15	8	2.3	0.9	2	481	0.39	100	0.27	25.72	CAD	Cart
SPC-M4-20-R	M4	0.7	20	8	2.3	0.9	2	481	0.39	100	0.33	29.15	CAD	Cart
SPC-M4-25-R	M4	0.7	25	8	2.3	0.9	2	481	0.39	100	0.39	41.16	CAD	Cart
SPC-M4-10-R(1000)	M4	0.7	10	8	2.3	0.9	2	481	0.39	1000	0.21	97.02	CAD	Cart
SPC-M4-12-R(1000)	M4	0.7	12	8	2.3	0.9	2	481	0.39	1000	0.23	118.58	CAD	Cart
SPC-M4-15-R(1000)	M4	0.7	15	8	2.3	0.9	2	481	0.39	1000	0.27	157.08	CAD	Cart
SPC-M4-20-R(1000)	M4	0.7	20	8	2.3	0.9	2	481	0.39	1000	0.33	169.40	CAD	Cart
SPC-M4-25-R(500)	M4	0.7	25	8	2.3	0.9	2	481	0.39	500	0.39	124.74	CAD	Cart

＊1：　Values in chart are for reference only. They are not guaranteed values. The recommended tightening torque is 50% of the torsional torque.

No products fulfill the conditions above.

We regret to inform you that no products fulfill the conditions you have entered.
Please change the values you have entered and search once again.

Nabeya Bi-tech Kaisha offers customized products in accordance with your needs.
Please feel free to contact us via the inquiry form.

Nabeya Bi-tech Kaisha
Customer Service

Please enter questions about customization and other product-related inquiries here.

Find the inquiry form here

Part Number
Amount
Price（＄）

Check other products Cart

Related Services

Material/Finish

	SPC-R
Main Body	PC (Polycarbonate) (Transparent)
Heat Resistance Temperature＊1	115℃

＊1：　This is the value for the resin material. The operating temperature of the product changes with performance conditions such as tightening torque.

Application

Electrical and electronic equipment

Characteristics

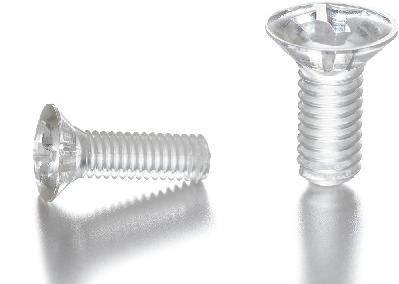

PC (polycarbonate) Phillips cross recessed round flat head machine screws.
PC (polycarbonate) has the highest shock resistance of engineering plastics.
Allowable operating temperature＊1 (min./max.): -40°C/115°C
PC has low water absorbency and excellent weather resistance.
For the properties and precautions for use of plastic screws, see “Properties of Plastic Screws.”⇒Plastic Screws
