MSXP-25C-6-10

Cleanroom / Vacuum / Heat Resistant Couplings - Slit Type (PEEK) - Clamping Type

Safety PrecautionsGlossaryMounting/maintenance

RoHS Compliant

  • A Trace of Outgas
  • Made of PEEK

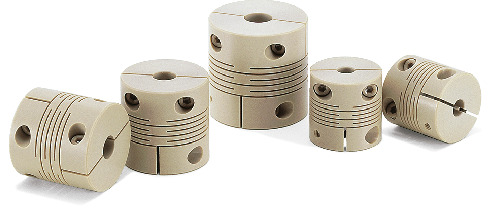

MSXP-C_CCleanroom / Vacuum / Heat Resistant Couplings - Slit Type (PEEK)

Dimension Drawing

MSXP-CCleanroom / Vacuum / Heat Resistant Couplings - Slit Type (PEEK) - Clamping Type寸法図

Part Number ALWFGM Screw Tightening
Torque (N・m)		Price
(USD)		 CAD
Download		 Add to Cart
MSXP-25C-6-10 25 8.5 25 4.25 8 M3 0.15 141.10 CAD Cart

Part Number Max. Bore Diameter
(mm)		 Rated
Torque＊1
(N・m)		Max. Rotational Frequency
(min-1)		 Moment of
Inertia
(kg・m2)＊2		Static
Torsional
Stiffness
(N･m/rad)		Max. Lateral Misalignment
(mm)		Max. Angular
Misalignment
(°)		 Max. Axial
Misalignment
(mm)		Mass
(g) ＊2
MSXP-25C-6-10 10 0.7 25000 3.0×10-7 110 0.05 0.5 ±0.1 3.8

※ The selected shaft's slip torque is smaller than the coupling's rated torque. Please note.
＊1：　Correction of rated torque due to load fluctuation is not required. For more detailed information, please refer to Selection Guidelines.

※ The shaft's slip torque may be smaller than the coupling's rated torque depending on the shaft bore.

＊2：　These are values with max. bore diameter.

Part Number
Amount
Price（＄）

Check other products Cart

　　　　　　

Additional Modification Service

Modified Part Number

Enter the desired bore diameter and then click [Check Modified Part Number].

Standard bore diameter(D1) Standard bore diameter(D2) Modified Part Number Price Add to cart

unit:mm
Applicable Bore Diameter
D1D2		 keyway Key
b t Nominal Dimension
b×h
Standard Dimension Allowance
(JS9)		 Standard Dimension Allowance
6 7       2 ±0.0125 1.0 +0.1
0 		2×2
8 9 10     3 ±0.0125 1.4 3×3
11 12       4 ±0.0150 1.8 4×4
13 14 15 16 17 5 ±0.0150 2.3 5×5
18 19 20 22   6 ±0.0150 2.8 6×6
24 25 28 30   8 ±0.0180 3.3 +0.2
0 		8×7
32 35 36 38   10 ±0.0180 3.3 10×8
40 42 44     12 ±0.0215 3.3 12×8
45 48 50     14 ±0.0215 3.8 14×9
55 16 ±0.0215 4.3 16×10

unit:inch
Standard Inch Bore Diameter
D1D2		 Keyway
Wk T
Standard Dimension Allowance Standard Dimension Allowance
1/2 1/8 +0.002
  0		 0.560 +0.01
  0
9/16 1/8 +0.002
  0		 0.623 +0.01
  0
5/8 3/16 +0.002
  0		 0.709 +0.01
  0
11/16 3/16 +0.002
  0		 0.773 +0.01
  0
3/4 3/16 +0.002
  0		 0.837 +0.01
  0
13/16 3/16 +0.002
  0		 0.900 +0.01
  0
7/8 3/16 +0.002
  0		 0.964 +0.01
  0
15/16 1/4 +0.002
  0		 1.051 +0.01
  0
1 1/4 +0.002
  0		 1.114 +0.01
  0
1-1/8 1/4 +0.002
  0		 1.241 +0.01
  0
1-1/4 1/4 +0.002
  0		 1.367 +0.01
  0
1-3/8 5/16 +0.002
  0		 1.518 +0.01
  0
1-1/2 3/8 +0.002
  0		 1.669 +0.01
  0
1-5/8 3/8 +0.002
  0		 1.796 +0.01
  0
1-3/4 3/8 +0.002
  0		 1.922 +0.01
  0

Characteristics

  • Property
MSXP-C
Low Particle ◎
Vacuum-supported ○
Low Outgas ○
Heat-resistance ○
Chemical Resistance ◎
Zero Backlash ◎
Allowable Misalignment ○
Electrical Insulation ◎
Cleanroom Specification ◎
Allowable Operating Temperature -20℃ to 80℃

◎: Excellent ○: Very good

  • This is a resin spring coupling with single-piece construction.
  • It can be used in an environment or cleanroom where heat resistance and chemical resistance are required, such as FPD manufacturing equipment.
  • PEEK superior in physical and chemical properties is adopted. Outgas quantity is extremely low.
  • A plate spring formed by a slit allows eccentricity, angular misalignment, and end-play to be accepted.

Material/Finish

MSXP-C
Main Body PEEK (Polyether Ether Ketone)
Hex Socket Head Cap Screw PEEK (Polyether Ether Ketone)

PEEK's color may vary depending on the lot or other matters.


Slip torque

As in the table below, the clamping type MSXP-C has different slip torque according to the bore diameter. Take care during selection.

Unit : N・m

Part Number Bore Diameter (mm)
6 8 10 12 14 15
MSXP-25C 0.5 0.6 0.7
MSXP-30C 0.8 1.1 1.5
MSXP-36C 0.7 1.2 1.8 2.2

These are test values based on the conditions of shaft dimensional allowance: h7, hardness: 34-40 HRC, and screw tightening torque of the values described in MSXP-C dimension tables. They are not guaranteed values.
Slip torque changes with usage conditions. Carry out tests under conditions similar to actual conditions in advance.


Structure

Clamping Type

MSXP-C MSXP-C

MSXP-C_CCleanroom / Vacuum / Heat Resistant Couplings - Slit Type (PEEK)


Application

FPD manufacturing device / Semiconductor manufacturing device

PEEK's Chemical Resistance

Chemical Name PEEK
10% Hydrochloric Acid ○
10% Sulfuric Acid ○
50% Sulfuric Acid ×
10% Nitric Acid ○
50% Nitric Acid ×
50% Hydrofluoric Acid ×
10% Phosphoric Acid ○
Formic Acid △
10% Acetic Acid ○
Citric Acid ○
Chromic Acid ○
Boric Acid ○
Methyl Alcohol ○
Glycol ○
Ammonia ○
10% Sodium Hydroxide ○
10% Potassium Hydroxide ○
Calcium Hydroxide ○
Hydrogen Sulfide (gas) ○
Sulfur Dioxide ○
Ammonium Nitrate ○
Sodium Nitrate ○
Calcium Carbonate ○
Calcium Chloride ○
Magnesium Chloride ○
Magnesium Sulfate ○
Zinc Sulfate ○
Hydrogen Peroxide ○

○: Available △: Available depending on conditions ×: Not available
This is test data with a specimen used at room temperature (23°C).
Chemical resistance changes with performance conditions. Always carry out tests under performance conditions similar to actual conditions in advance.


PEEK's Physical Properties

Property Test Method unit PEEK
Tensile Strength D638 N/mm2 97
Tensile Elongation D638 % 65
Bending Strength D790 N/mm2 156
Bending Elastic Modulus D790 GPa 4.1
Izod Impact Value (with Notch) D256 J/m 94
Rockwell Hardness D785 R / M Scale M99
Deflection Temperature Under Load (1.82MPa) D648 °C 152
Combustibility UL94 - V-0
Dielectric Constant (106 Hz) D150 - 3.3
Dielectric Loss Tangent (106 Hz) D150 - 0.003
Volume Resistivity (x1014) D257 Ω·m 4.9
Insulation Breakdown Strength D149 MV/m 17
Arc Resistance D495 sec 23
Specific Gravity D792 - 1.30
Water Absorption (in 23°C Water × 24 h) D570 % 0.500
Content by Percentage of Glass Fiber - % 0

Analysis of Outgas

Unit : (v/v ppm)

Component Content
Inorganic Gas Hydrogen 500 or Less
Carbon Monoxide 500 or Less
Carbon Dioxide 500 or Less
Organic Gas Methane 5 or Less
Ethane 5 or Less
Ethylene 5 or Less
Propane 5 or Less
Acetylene 5 or Less
i-Butane 5 or Less
n-Butane 5 or Less
Propylene 5 or Less

Both inorganic gas and organic gas are not more than the lower limit of determined amount and are not detected.

  • Measurement Method
    Inorganic gas----Gas chromatography (TCD)
    Organic gas----Gas chromatography (FID)
  • Measurement Conditions
    Heating temperature----100°C

MSXP-C_TTechnical Information


Eccentric Reaction Force

MSXP-C_TTechnical Information


Thrust reaction force

MSXP-C_TTechnical Information


Change in static torsional stiffness due to temperature

MSXP-C_TTechnical Information
